DRILLING

Machine drilling : your high-tech drill bits

For any machine drilling operation, Diager Industrie can meet all your specific needs. As a solutions provider, we know how to adapt to all constraints and meet all your specifications. Our drill bits are suitable for all industries. We can assist you in your quest for quality and performance by offering comprehensive solutions.

Diager Industrie offers a wide range of high-tech standard drill bits for all steels : stainless steel, refractories, titanium and cast iron. Our tools are also suitable for use at very high speeds. Download our catalogue for more information.

Our experts are also at your disposal for the development of specific tools. Thanks to our design office and our testing platform, our teams are able to produce bespoke drill bits and to guarantee their performance and efficiency to effectively manage your production costs. As part of our commitment to our customers, we listen carefully to your requirements and find technical solutions to improve your performance.

Contact us today to enlist the help of our experts.

.


Carbide insert drill bit

Cutting depth 6°

  • Drilling depth 3 x Ø
  • Ø of tools 1.50 to 50.00
  • Cylindrical / tenon / flat / morse taper attachment
  • External coolant supply or micro-spraying
  • Conventional-speed machining
  • Materials: all materials / composite materials

Cutting depth 16°

  • Drilling depth 3 x Ø
  • Ø of tools 2.50 to 16.00
  • Cylindrical / tenon attachment
  • External coolant supply or micro-spraying
  • Conventional-speed machining
  • Materials: light alloys / synthetic materials

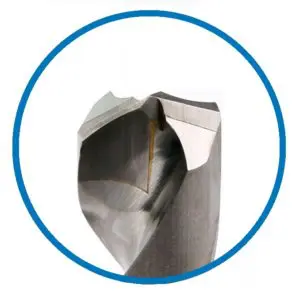

Removable insert

  • Drilling depth 3 x Ø / 5 x Ø / 7 x Ø
  • Ø of tools 8.00 to 50.00
  • Cylindrical / flat attachment
  • Central coolant supply
  • Conventional-speed machining
  • Materials: steel / cast iron

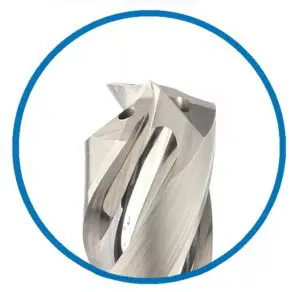

Solid carbide drill biy

2 spiralesflute

  • With or without oil hole
  • With or without coating
  • Ø of tools 0.40 to 20.00
  • Cylindrical / tenon / flat attachment
  • 26 types of sharpening
  • 10 types of flutes

2 straight flute

  • With or without oil hole
  • With or without coating
  • Ø of tools 1.00 to 20.00
  • Cylindrical / tenon / flat attachment
  • 5 types of flutes
  • 7 types of sharpening

3 spiral flute

  • With or without oil hole
  • With or without coating
  • Ø of tools 3.00 to 20.00
  • Cylindrical / tenon / flat attachment
  • 3 types of sharpening
  • 2 types of flutes

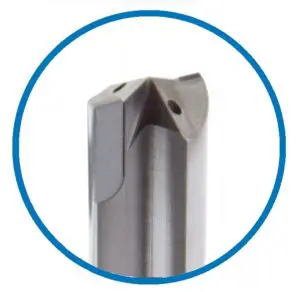

    PCD insert drill biy

  • Available on request. Please contact us.
Perçage_DIAGER INDUSTRIE
